Modular Kayak Rigging: Step-by-Step Upgrades for Stability, Storage, and Electronics

Modular Kayak Rigging: Step-by-Step Upgrades for Stability, Storage, and Electronics

Modular kayak rigging turns a basic hull into a versatile platform for fishing, photography, touring, or overnighters. With a modular approach you can add, remove, and reconfigure components without permanently altering the kayak, preserving resale value while increasing capability. This comprehensive guide covers planning, parts, step-by-step installs, wiring and power strategy, real-world setups, troubleshooting, and maintenance. It is written for paddlers who want reliable, repeatable upgrades that improve stability, storage, and electronics integration.

Why Modular Rigging Works

• Adaptability: Swap accessories based on the mission, weather, or water type.
• Reversibility: Use deck tracks, base plates, and clamp-on mounts instead of permanent holes.
• Safety: Incremental upgrades let you test changes in controlled conditions and undo them if they negatively impact handling.
• Cost control: Prioritize high-impact upgrades and spread cost over time.
• Optimization: Fine tune weight distribution and electronics placement as you learn what works for your paddling style.

How to Use This Guide

Start with the planning checklist, identify priority areas, then follow the step-by-step sections for stability, storage, and electronics. Use the sample setups to visualize how components integrate. Throughout the article you will find practical installation tips and safety reminders. After installing, review the testing and troubleshooting section and keep the maintenance checklist handy.

Planning and Design: Questions to Answer First

• What is your primary use case? Fishing, touring, photography, or mixed use?
• What are your typical trip lengths and average gear weight?
• Do you prefer sit-on-top or sit-in kayak ergonomics?
• Will you need to stand or move on the deck frequently?
• Do you want permanent electronics like a chartplotter, or portable devices you can remove each trip?
• How important is preserving the hull from drilling and permanent modification?

Tools, Materials, and Key Components

Gather tools and materials before you start. Prioritize marine-grade materials and corrosion-resistant hardware.

• Basic tools: drill, assortment of drill bits, countersink bit, cordless driver, files, measuring tape, pencil, masking tape, marine silicone, calipers or ruler.
• Mounting hardware: T-track systems, deck plates, flush mount bases, RAM ball mounts, quick-release buckles, cam straps, stainless or 316-grade fasteners or coated stainless.
• Electronics and power: marine fused distribution block, inline fuse holders, sealed batteries (LiFePO4), switch panels, USB chargers, waterproof connectors, cable glands, transducer mount or arm.
• Stability and trim: inflatable or air-filled outriggers and drybags for trim tuning.
• Storage: crates or sleds, MOLLE/PALS panels, hatch bags, dry-boxes, bungee cord kits, gear tracks for accessory placement.
• Fastening aids: pad eyes, D-rings, rubber well nuts for non-through-hull threaded anchors, heavy duty Velcro, marine adhesive tape.
• Safety: PFD, bilge pump, paddle leash, signal mirror or whistle, VHF or phone-based emergency options.

Pre-installation Survey and Marking

Before drilling or gluing anything, perform a thorough pre-installation survey.

• Clear the deck of gear and clean surfaces with mild detergent and isopropyl alcohol where adhesive will be used.
• Measure and mark locations for tracks, mounts, and accessories. Use masking tape and a pencil or marker to visualize placement.
• Temporarily clamp or tape items in place and sit in the kayak to check ergonomics, reach, and sight lines.
• Assess internal hull features under the deck. If possible, inspect the underside from hatches or use a borescope to avoid placing fasteners where reinforcement is limited.
• If you must make through-hull installations, locate keel supports or hull reinforcements and consider using rubber well nuts or backing plates to spread load and protect the hull.

Detailed Stability Upgrades

Stability upgrades are often the most critical because they affect safety and handling. Follow the modular approach so you can remove or adjust components if needed.

• Step 1: Baseline stability test
  • Float the kayak unloaded, then with typical gear load. Take notes on heel, bow or stern squat, and tracking behavior in calm water and slight chop.
• Step 2: Weight distribution and trimming
  • Most stability problems are related to weight distribution. Move heavy items closer to the center line and keep them low. Use dry bag ballast in the stern if the bow lifts, or in the bow if the stern sits low.
  • Small, frequent changes in gear placement are easier to test than major hardware changes.
• Step 3: Add a skeg or rudder for tracking
  • Skegs improve tracking and reduce yaw in wind, while rudders offer more active steering. Use bolt-on or clip-in systems to maintain modularity. Verify clearance for beaching and transport.
• Step 4: Install trim tabs or hydrofoils
  • Trim tabs attach near the stern to control heel and improve directional stability in crosswinds. Choose adjustable, removable designs.
• Step 5: Use outriggers
  • Inflatable outriggers offer dramatic stability increases for standing or heavy-gear use. Ensure mounting points distribute load and that the connection system allows rapid removal for transport.
• Step 6: Practice stability drills
  • After any modification, practice re-entry, controlled capsizing, and balance moves in calm water to validate the setup.

Detailed Storage Upgrades

Effective storage is about organization, accessibility, and keeping weight centralized. Modular systems let you change layout for fishing versus touring trips.

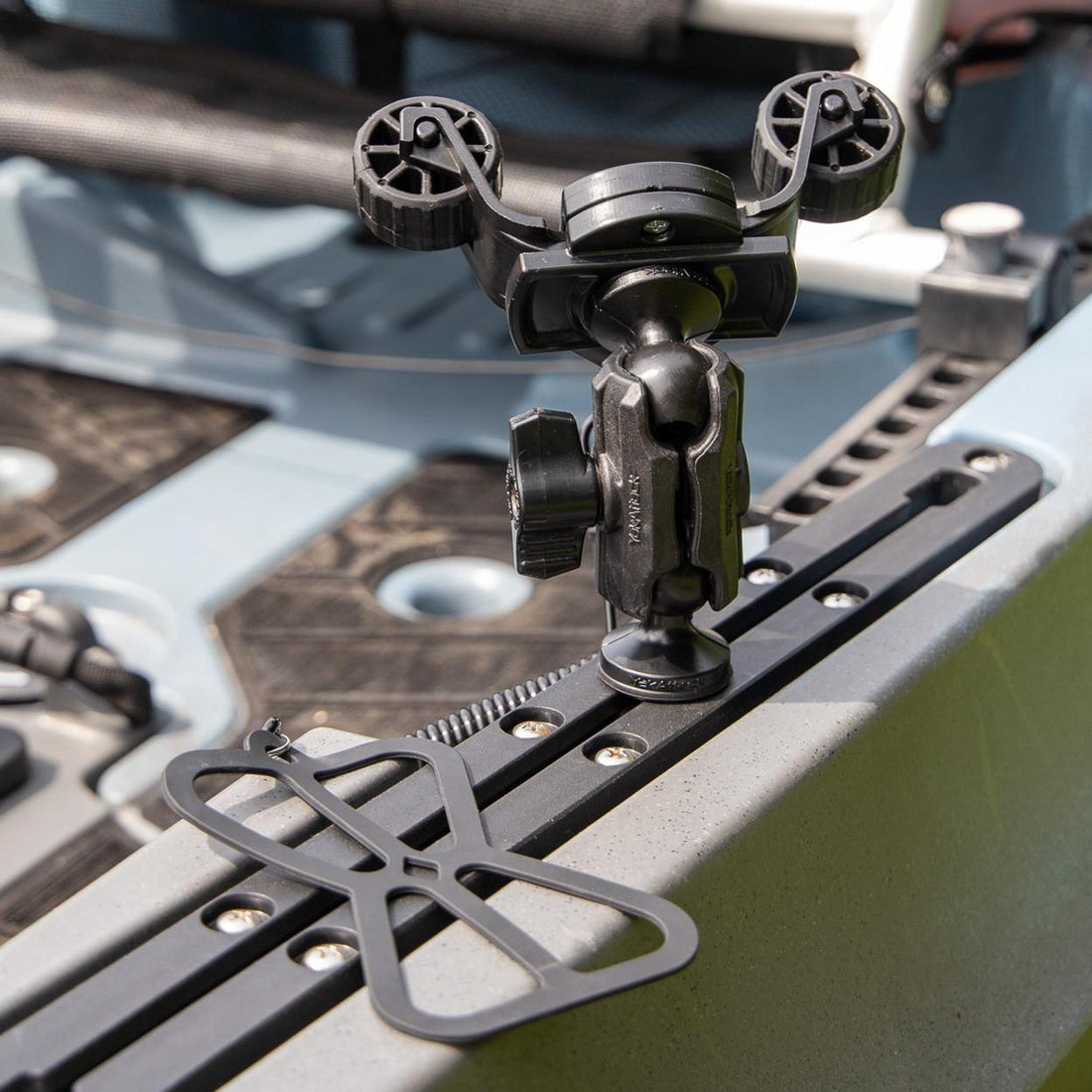

• Step 1: Install universal deck tracks
  • Deck tracks let you locate rod holders, camera arms, GPS, and cup holders anywhere on the deck. Use corrosion-resistant T-bolts and install into reinforced areas when possible.
• Step 2: Create a rear crate or sled
  • Crate systems are versatile and inexpensive. Mount them on a sled for improved load distribution and secure them with cam straps and quick-release buckles. Use foam blocks under the crate to reduce hull abrasion.
• Step 3: Modular hatch extenders and dry boxes
  • For kayaks with small hatch volume, an external dry box or hatch extender strapped to the deck adds waterproof storage for electronics and food. Ensure it is strapped low and near the center for stability.
• Step 4: Small-item organizers
  • Use MOLLE panels, Velcro tool rolls, and bungee organizers for pliers, lures, camera batteries, and other small items. Place frequently used items within arm reach.
• Step 5: Fast-access pockets and anchor points
  • Install pad eyes and D-rings for secure tie-down points. Add accessible pockets for phones, keys, and safety gear in waterproof pouches.

Detailed Electronics Upgrades and Power Management

Electronics integration requires planning for power, waterproofing, placement, and cable routing. A modular power system lets you remove the battery and electronics pod when transporting or storing the kayak.

• Step 1: Device selection and placement
  • Decide which devices will be permanently mounted and which are portable. Keep displays within a comfortable line of sight and avoid obstructing paddle stroke or casting arcs.
• Step 2: Mounting strategy
  • Use RAM mounts with T-track bases, or a custom electronics pod that secures to deck tracks. For multi-function pods, allow room for cable connections and ventilation if using sealed batteries with heat management needs.
• Step 3: Battery choice and power architecture
  • LiFePO4 battery packs offer lighter weight, higher usable capacity, and longer life, but are more expensive. Choose a battery with an integrated BMS when possible. Always include a fused distribution panel and a master disconnect switch.
  • Plan for at least 2x the expected energy use for a day trip to maintain reserve capacity and avoid deep discharge.
• Step 4: Wiring best practices
  • Use marine-grade wiring and connectors, keep wire runs as short as practical, and fuse each circuit close to the battery. Label both ends of every cable for troubleshooting. Use cable glands or protective sleeves where wires pass through deck plates, and secure wiring with clamps and adhesive pads to prevent chafe.
• Step 5: Transducer mounting
  • Prefer clamp-on or scupper-mounted transducer arms for modularity. For more accurate depth readings a through-hull mount may be better, but consult a professional and ensure watertight sealing and proper placement relative to hull turbulence zones.
• Step 6: Chargers and solar options
  • Consider a small portable solar panel to top off batteries on multi-day trips. Use an MPPT solar charge controller sized for your battery chemistry. Keep charging connections simple and secured to prevent saltwater intrusion.

Installation Walkthroughs: Practical Steps and Tips

Below are step-by-step walkthroughs for common modular installations. The emphasis is on reversibility and safety.

• Installing deck tracks
  1. Dry-fit the track with masking tape, verify position while sitting and reaching.
  2. Mark hole centers, pre-drill pilot holes slightly smaller than the fastener diameter, and countersink if necessary.
  3. Apply marine silicone along the underside of the track to seal and bond, then fasten with stainless screws or rivets.
  4. Wipe off excess sealant and allow cure time before loading accessories.
• Mounting a removable transducer arm
  1. Choose a location behind the cockpit where the hull flow is clean. Clamp-style mounts minimize drilling.
  2. Test the arm at different angles and positions, then tighten clamps and secure cable runs with adhesive-backed mounts.
  3. Route the cable to the electronics pod and secure it along the hull with protective sleeves.
• Installing a battery pod
  1. Select a low-profile container or drybox sized for your battery. Mount it near the kayak center line and as low as practical.
  2. Install a fused master disconnect switch on the pod. Use short battery leads with heavy gauge wiring to minimize voltage drop.
  3. Secure the pod with straps and quick-release fasteners so you can remove it for charging and storage.

Sample Modular Setups for Common Use Cases

These sample builds show how to combine modular components for different priorities.

• Fishing-focused kayak
  • Rear crate on a sled, two front deck tracks for rod holders and fishfinder display, clamp-on transducer arm, small LiFePO4 battery pack in a drybox, RAM mount for camera, outriggers for stand-up stability, PALS panel for tools.
• Photography and multimedia kayak
  • Lightweight deck tracks for camera mounts, center deck riser for a laptop or tablet, removable power pod with USB-C PD port for camera batteries, MOLLE panel for accessory storage, soft-sided cooler for an accessible staging area.
• Touring and overnighter kayak
  • Minimal electronics, spare battery inside hatch for navigation, rear crate for cooking gear, bow and stern drybags for sleeping bag and tent, quick-release deck lines for easy unloading at campsites.

Troubleshooting Common Problems

• Issue: New mounts cause unexpected wobble or heel
  • Solution: Remove the newest mount and retest. Shift weight lower and closer to center line. Add ballast or adjust placement of heavy items.
• Issue: Electronics intermittently lose power
  • Solution: Inspect fuses, check cable crimps, and ensure connectors are fully seated. Secure wiring to prevent chafe. Verify the battery state-of-charge and test under load.
• Issue: Persistent water intrusion near a new mount
  • Solution: Reseal the area with marine silicone and allow full cure. Use backing plates or distribute load to reduce flex and seal fatigue. Consider a non-through-hull alternative mount.

Maintenance and Seasonal Care

• Rinse all components with fresh water after saltwater use and let everything dry before storage.
• Inspect fasteners for corrosion and replace as needed with 316-quality stainless hardware.
• Check seals and silicone annually and redo if shrinkage or cracks appear.
• Cycle and store batteries according to manufacturer guidelines, especially LiFePO4 packs which benefit from a partial charge during storage.
• Lubricate moving parts on rudders and outriggers, and test quick-release mechanisms for reliability.

Permits, Legal, and Safety Considerations

• Check local buoyancy and safety gear requirements, such as life jacket laws, lighting, and sound-producing devices.
• Ensure that electronics installations do not obscure required navigation lights or compromise visibility.
• When installing radios or antennas, confirm local frequency regulations and recommended antenna placement to avoid interference with paddling or safety lines.

Estimated Costs and Time by Project Tier

• Basic modularization
  • What: Deck tracks, bungee organizers, crate
  • Time: 2 to 6 hours
  • Cost: 50 to 250 USD
• Intermediate setup
  • What: Track-mounted electronics, battery pod, transducer arm
  • Time: 6 to 12 hours
  • Cost: 300 to 1,200 USD depending on battery and fishfinder choices
• Advanced system
  • What: Integrated electronics pod, outriggers, pro-level transducer install
  • Time: 10 to 25 hours including professional help
  • Cost: 1,500 to 5,000+ USD depending on components and professional installation

Recommended Product Categories and Buying Tips

• Choose track systems from trusted marine accessory brands with wide-ranging T-slot compatibility.
• Buy RAM-style mounts for camera and display versatility. Look for corrosion-resistant finishes rated for marine use.
• Prefer sealed batteries with IP-rated connectors and an integrated battery management system for LiFePO4 packs.
• When buying outriggers, ensure the mounting system fits your hull and that the floats are durable and UV-resistant.
• For transducers, match frequency and cone angle to your fishing depth and bottom type, and favor modular clamp mounts if you want portability.

Frequently Asked Questions

• Will adding tracks and mounts damage my kayak?

  When installed correctly with marine sealant and into reinforced areas or distributed with backing plates, tracks and mounts should not harm the hull. Minimize the number of through-hull penetrations and use removable clamp-on options where possible.

• Are LiFePO4 batteries safe for kayaks?

  LiFePO4 are safer than many lithium chemistries and offer better cycle life and weight savings. Use a pack with an integrated BMS, secure mounting, and a proper fuse. Keep them dry and ventilated according to the manufacturer recommendations.

• How much weight can I add before stability suffers?

  Check the kayak manufacturer load rating. Beyond that, keep heavy items near the centerline and close to the cockpit. Test changes incrementally and practice re-entry and recovery procedures after significant additions.

Closing Thoughts and Next Steps

Modular kayak rigging is about thoughtful iteration. Start with low-risk, reversible changes like deck tracks and a small battery pod. Test how each upgrade affects stability and handling. Document your placements and wiring to simplify future changes. Over time you will assemble a modular toolkit tailored to your fishing, touring, or photography needs. The modular mindset keeps your kayak adaptable, safe, and more fun on the water.

Pick one small upgrade to do this weekend: install a short length of deck track to test accessory locations, or mount a drybox for your battery and charge it overnight to see how long it lasts. Keep testing and refining, and enjoy the process of making your kayak truly yours.
