Malone - FoldAway-5™ Multi-Rack Folding 1 or 2 Kayak, SUP Carrier

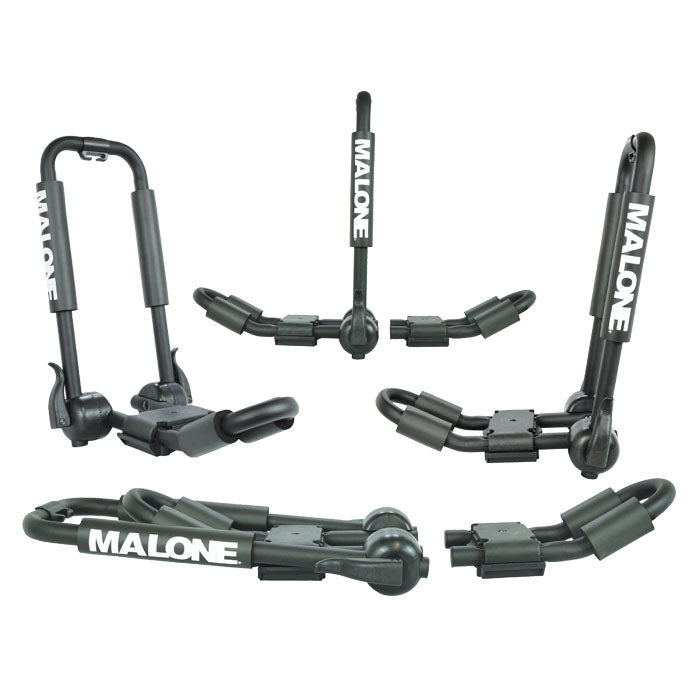

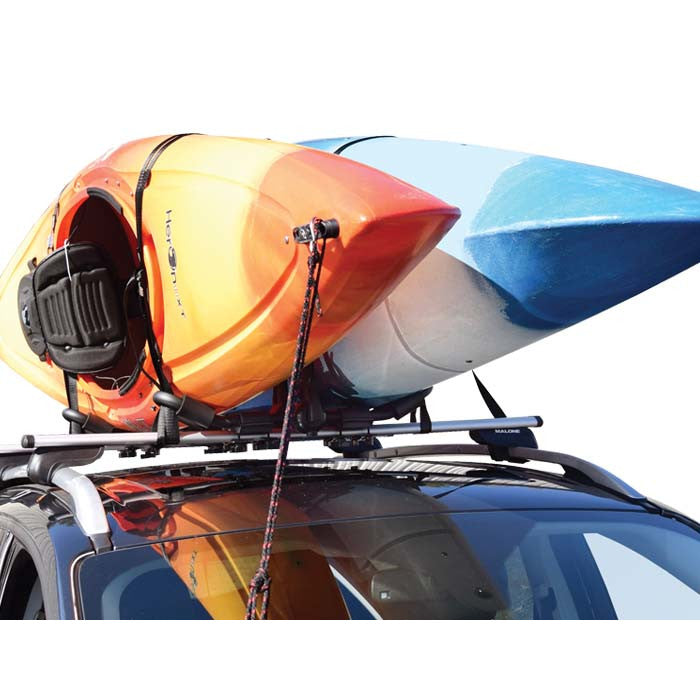

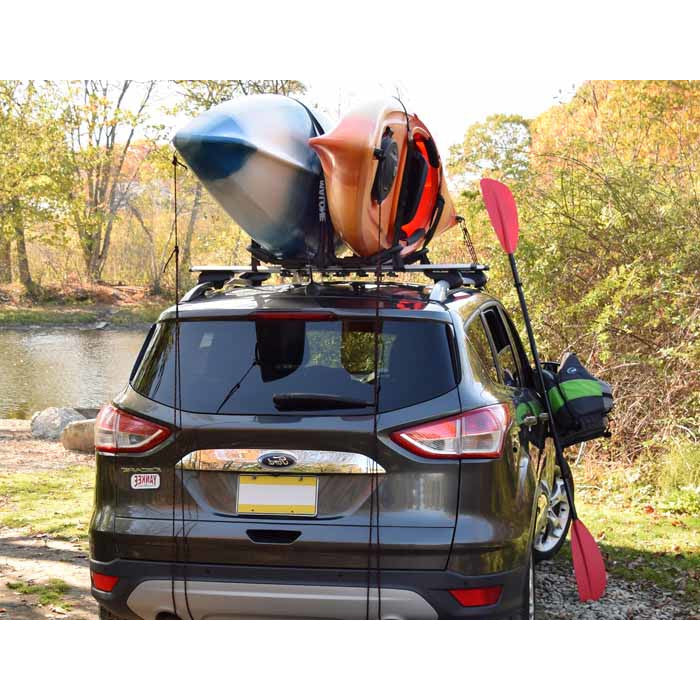

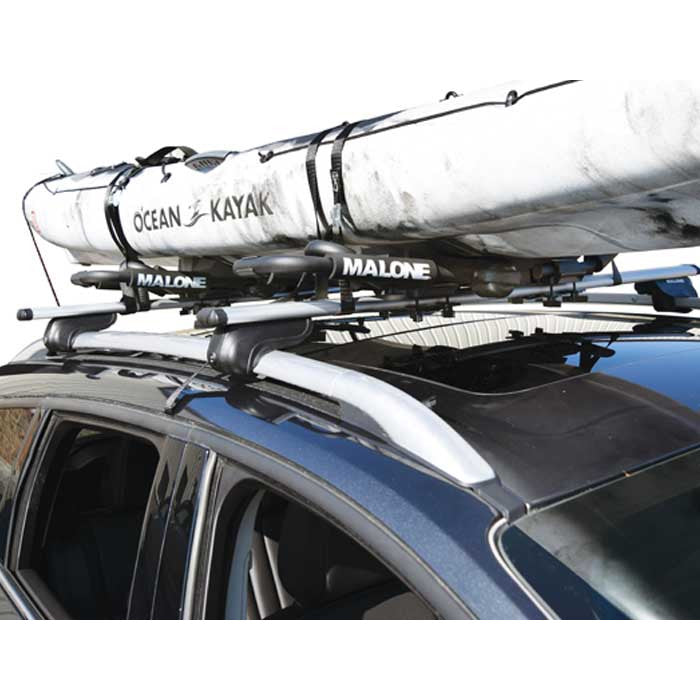

The FoldAway-5™ is designed to transport a single recreational or touring kayak on its side, stack two kayaks vertically, carry a canoe or large sit-on-top kayak, and accommodate any size SUP. It features quick-release fold-down frames with removable 2-boat modules for handling wider loads. Constructed from corrosion-resistant coated steel with thick oversized padding and durable molded components, it ensures long-lasting performance. The universal mounting system fits a wide range of aftermarket load bars (round, square, oval) and most factory racks. Included are two lengths of mounting bolts for optimal installation, cam-style load straps, bow and stern tie-downs, and SUP foam pads. Backed by a Lifetime Limited Warranty on materials and workmanship.

Features:

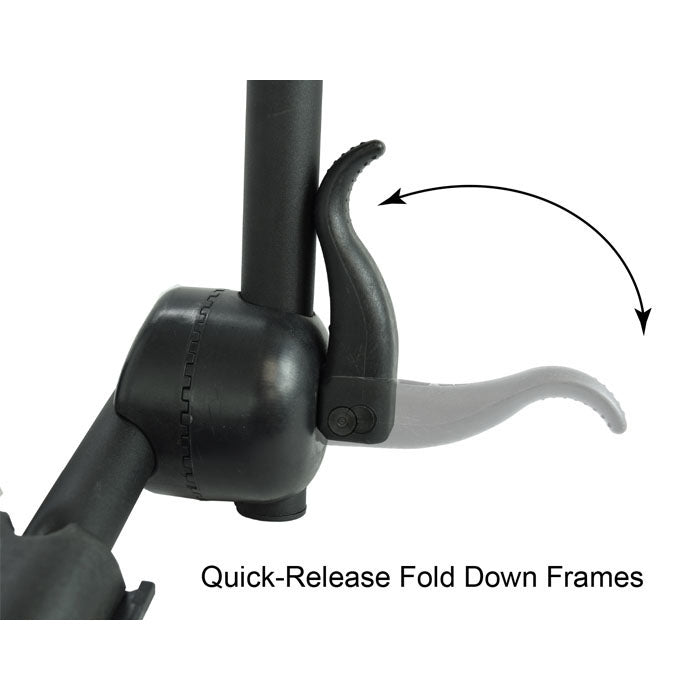

•     Quick release fold-down frames for low clearance

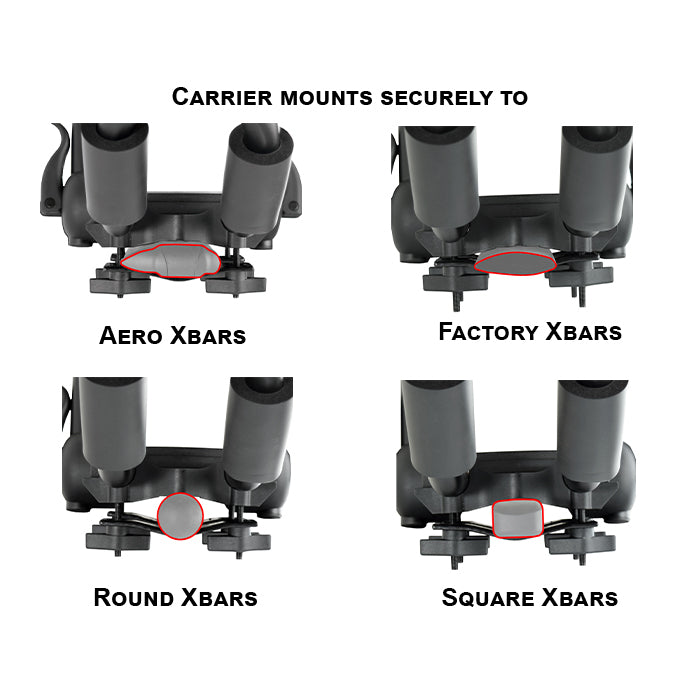

•     Universal mounting adapters fit most load bar designs

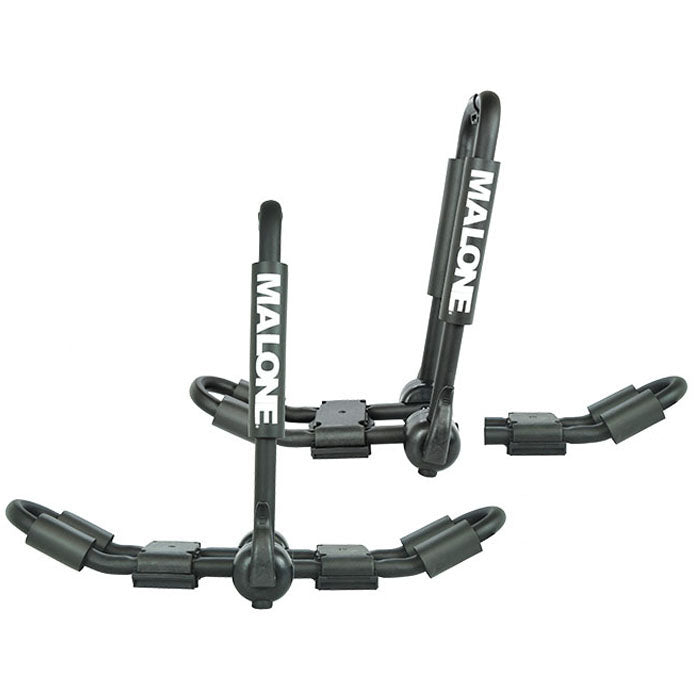

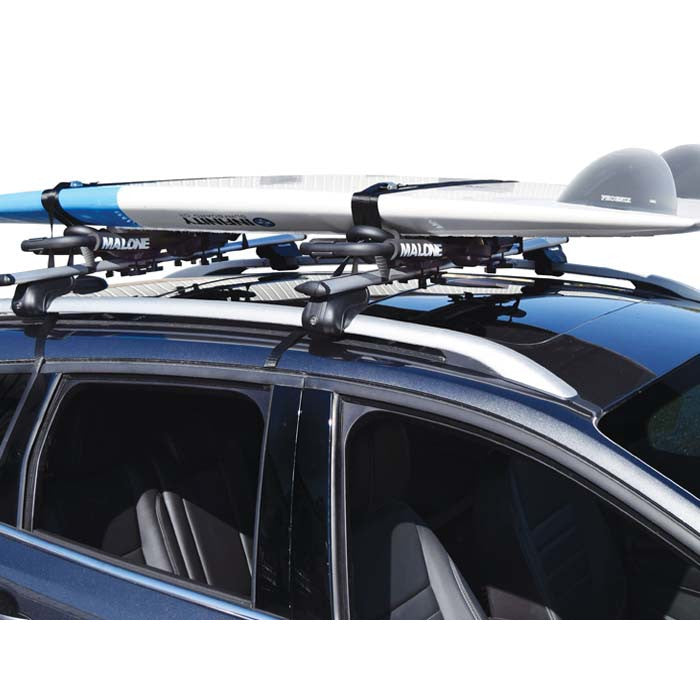

•     MultiRack extension modules to carry SUPs & canoes
•     SUP insert pads to cushion and provide hull protection during transport
•     Two lengths of mounting bolts for improved bar fit
•     Includes 11' load straps and tie-downs for two boats
•     Lifetime Limited Warranty

Specifications:

•     Weight: 14.5 lb
•     Dimensions (folded): 19.5" x 8.5" x 3.5"
•     Dimensions (deployed): 19.5" x 8.5" x 14"
•     Load Capacity: 2 boats - 75 lb maximum weight limit per boat
•     Compatible with most load bars up to 1.5" tall x 3.5" wide (use 80mm bolts provided)

Installation:

•     Always refer to Malone’s Fit Guide for proper, correct and approved vehicle fit.
•     Bow and stern safety tie-downs are required for all Malone rooftop transport(s). Failure to correctly install and use safety tie-down lines voids all warranty and liability.
•     Carefully review instructions and register your warranty prior to first time use.
•     Malone carriers come with two lengths of mounting bolts in order to achieve the best cross bar fit. Retain unused bolts for future use with different cross bars.
•     The carrier base has a rectangular "cutout" for square cross bar fit. The "cutout" will not affect the fit or function when installed to round or oval cross bars.
•     Optional T-Slot fit kits for Aero Style Bars and Truck Rack Systems sold separately.

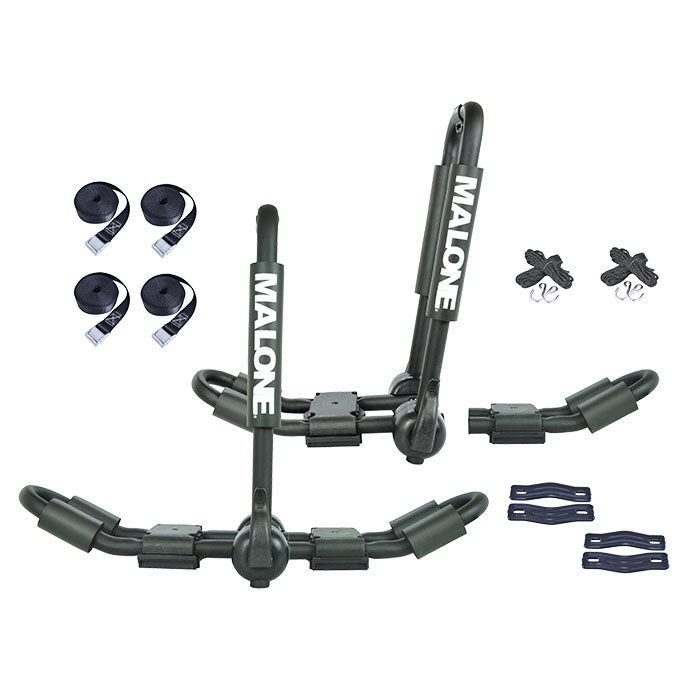

What’s In The Box:

    (2) Fold-Down Carriers
    (2) MultiRack Extension Modules
    (16) M6 x 1mm zinc coated 60mm Mounting Bolts
    (16) M6 x 1mm zinc coated 80mm Mounting Bolts
    (16) M6 T-Knobs
    (8) Universal Mounting Brackets
    (2) SUP Foam Blocks
    (4) 11' Cam Buckle Load Straps
    (4) Bow and Stern Safety Lines w/ S-Hooks
    (1) Instruction Manual
