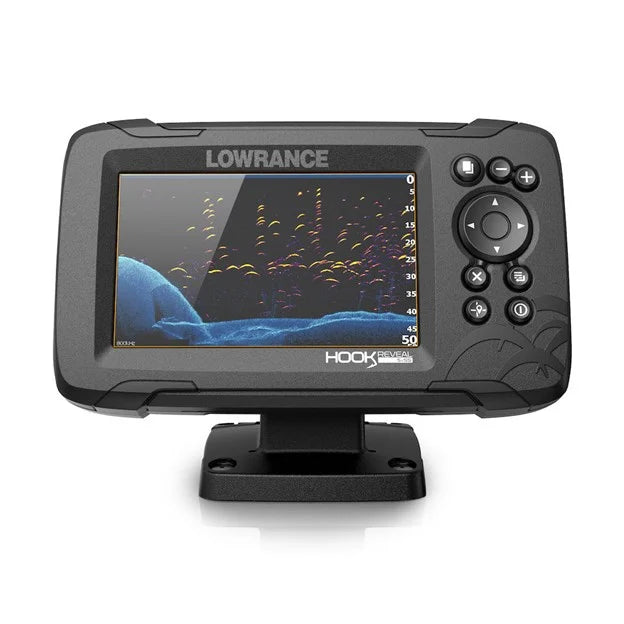

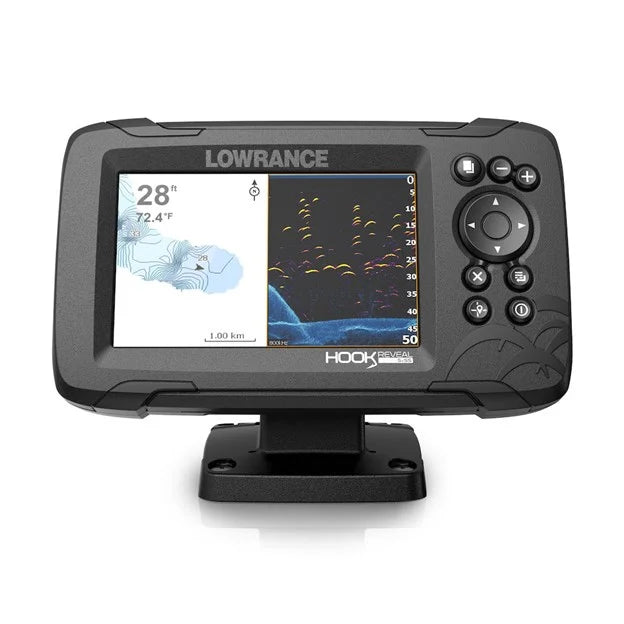

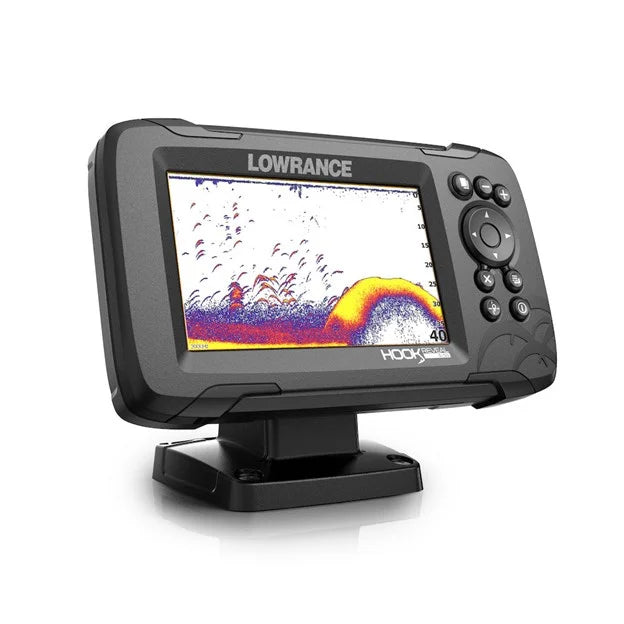

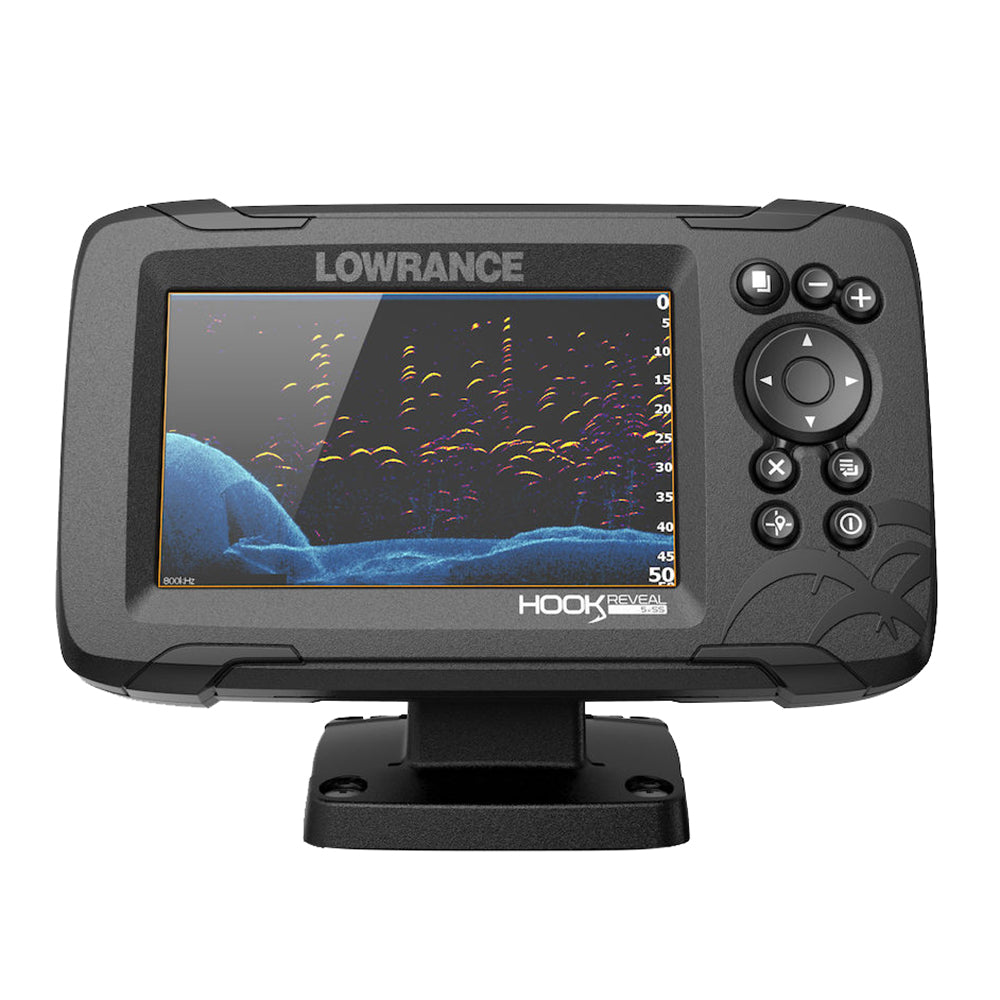

Lowrance HOOK Reveal 5x Fishfinder w/SplitShot Transducer & GPS Trackplotter

Lowrance HOOK Reveal 5x Fishfinder w/SplitShot Transducer & GPS Trackplotter

Regular price $329.97 USD
Regular price Sale price $329.97 USD
Sale Sold out
Shipping calculated at checkout.

The HOOK Reveal offers powerful features to aid in your fishing endeavors, such as Autotuning Sonar, DownScan Imaging™ and the newly-introduced FishReveal™, which simplifies the detection of fish by combining CHIRP sonar and DownScan Imaging™. Further, the GPS Trackplotter facilitates route, trail and waypoint navigation.


  • FishReveal™
  • Autotuning sonar
  • Double the sonar coverage of other fishfinders
  • SplitShot transducer with High CHIRP and DownScan Imaging™
  • GPS Trackplotter (No Charts)
  • 5-inch SolarMAX™ Display
  • New fish-finding color palettes
  • Optimized keypad with one-touch access to key features
  • Easy front-dash or gimbal-bracket mount


  • Display
    • Backlight Color
    • Pure White LED
  • Display Resolution
    • 800 x 480
  • Screen Brightness
    • >1000 NITS
  • Viewing Angles
    • 80° top/bottom, 85° left/right
  • Connectivity
    • SD Card Storage
    • Micro SD Card(32 gb Max)
  • Approvals
    • Approvals Compliance
    • FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
  • Electrical
    • Power Consumption max
      • 0.9A @ 13VDC with backlight on full
    • Power Consumption min
      • 0.9A @ 13VDC with backlight on full
    • Power Consumption typical
      • 0.9A @ 13VDC with backlight on full
    • Recommended Fuse Rating
      • 5A
    • Supply Voltage
      • 12v DC (10.8-17VDC)
  • Environment
    • Humidity
      • 60°C, 95% relative humidity (RH) for 18 hours
    • Operating Temperature Range
      • 5°F to 131°F (-15°C to 55°C )
    • Shock Vibration
      • 100,000 cycles of 20 G
    • Storage Temperature Range
      • 4°F to 140°F (-20°C to 60°C )
    • Waterproofrating
      • IPX7 with card door closed
  • GPS
    • Correction
      • DGPS, WAAS
    • Time to First Fix
      • 30s
      • MFD
  • Cartography included
    • GPS Plotter Only (No Charts)
  • GPS
  • Sonar Compatibility
    • Integrated:CHIRPBroadbandDownScan
  • Waypoints, Routes, Tracks
    • 3000 Waypoints100 Routes100 Trails
  • Physical
    • Compass Safe
    • 12" (300mm)
  • Dimensions W x H x D
    • 7.31" (185.7 mm) x 4.32" (109.8 mm) x 4.53" (115.0 mm)
  • Mounting Type
    • Gimbal BracketFront Dash Flush Mount
  • Weight
    • 0.90 lb. (0.41 kg)
  • Other
    • Interface
    • Keypad:8-way directional keypadZoom +/-ExitEnter/MenuWaypoint/CursorPower/LightPages
    • Languages
    • Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
  • Warranty Period
    • 1 Year + 4 additional years of upgrade options totaling 5 years
