Malone - FoldAway-J™ Kayak Carrier with Tie-Downs - J-Style

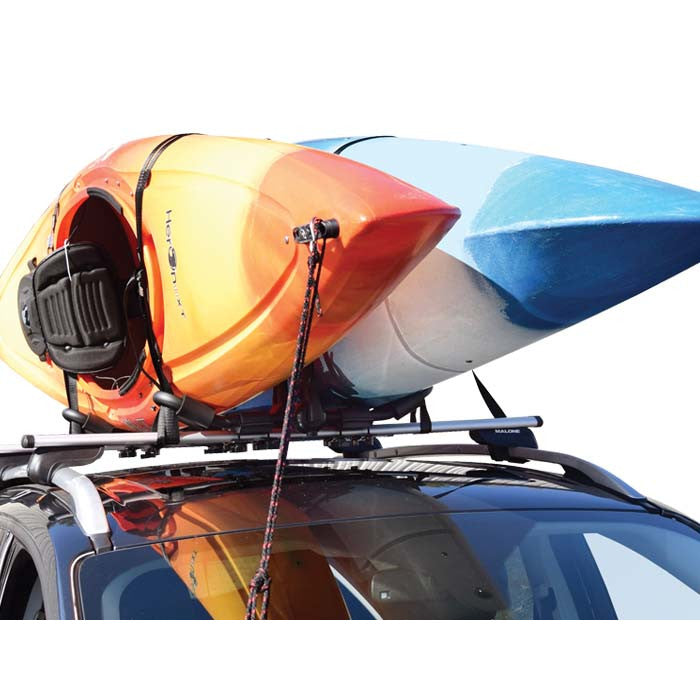

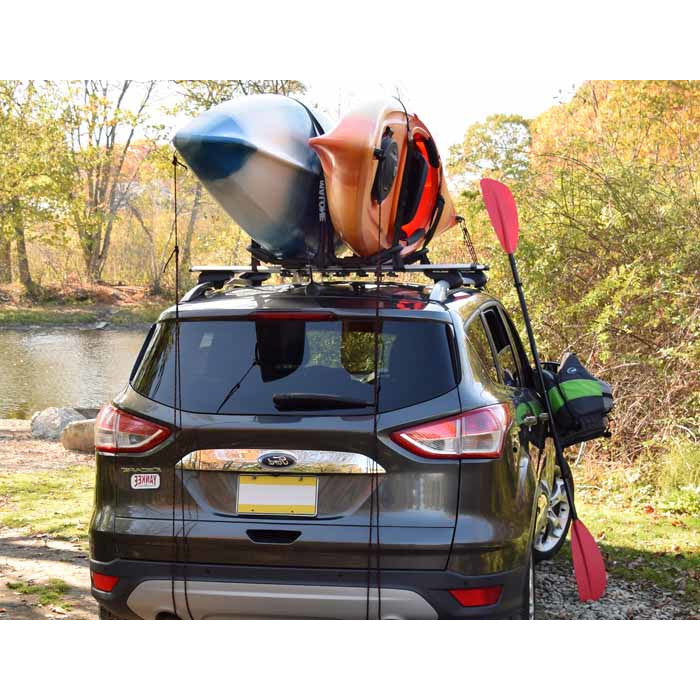

The FoldAway-J™ is specifically engineered to securely transport a single recreational or touring kayak on its side. It features quick-release fold-down frames that reduce height and enhance fuel efficiency when folded away. Constructed from corrosion-resistant coated steel with oversized padding and durable molded components, it offers a unique mounting system compatible with a wide range of aftermarket load bars—round, square, and oval—as well as most factory racks. Dual mounting points prevent lateral movement, and two bolt lengths ensure optimal installation. Included are cam-style load straps and safety tie-downs, all backed by a Lifetime Limited Warranty on materials and workmanship.

Features:

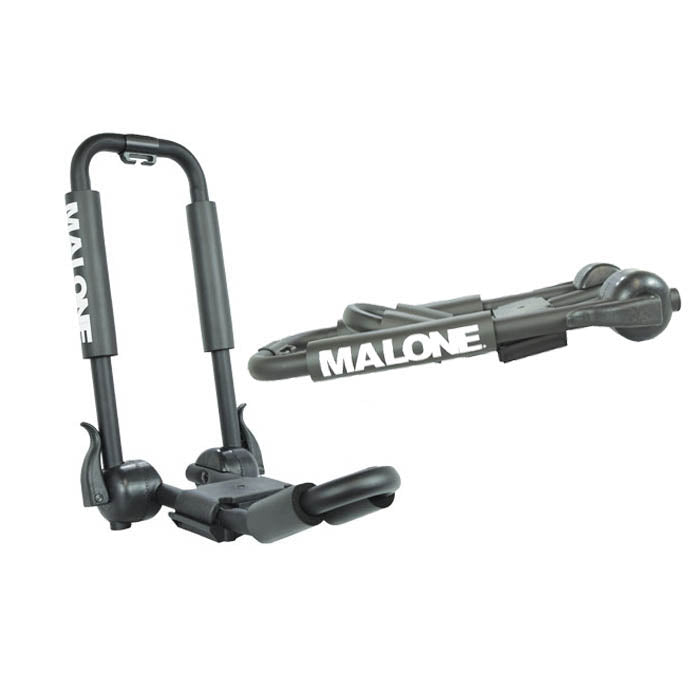

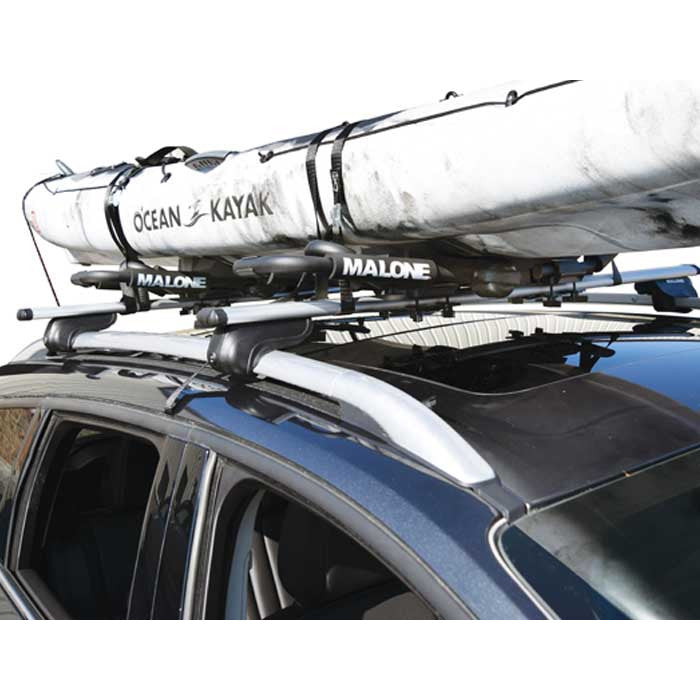

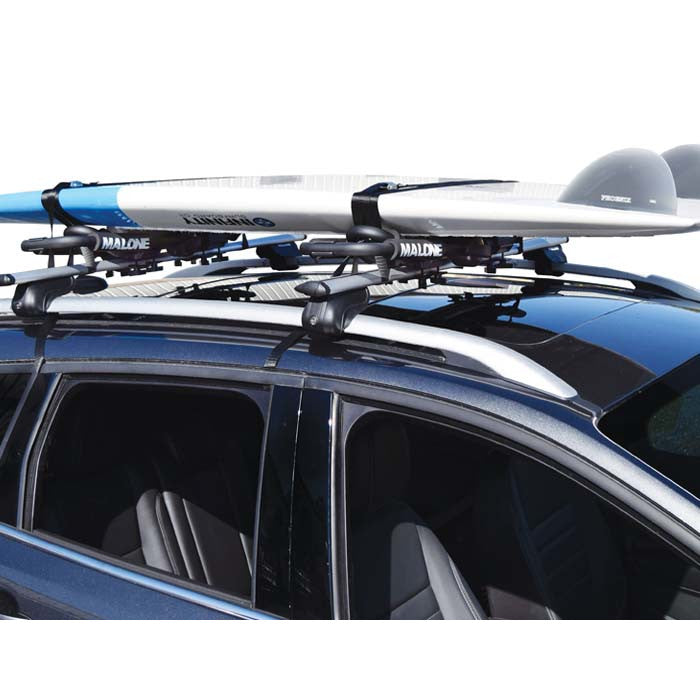

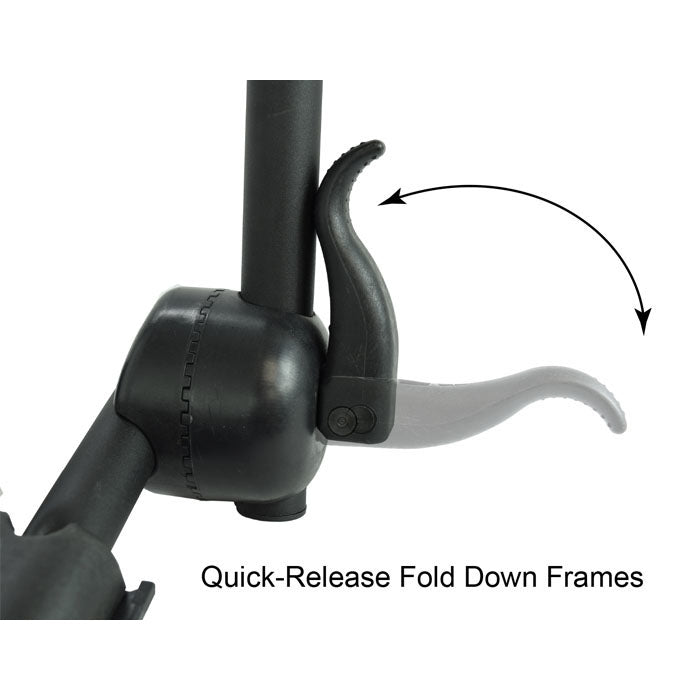

•     Quick release fold-down frames for low clearance
•     Universal mounting adapters fit most load bar designs
•     Two lengths of mounting bolts for improved bar fit
•     Includes 11' load straps and tie-downs for a single kayak
•     Lifetime Limited Warranty

Specifications:

•     Weight: 10 lb
•     Dimensions (folded): 19.5" x 8.5" x 3.5"
•     Dimensions (deployed): 19.5" x 8.5" x 14"
•     Load Capacity: 1 boat - 75 lb maximum weight limit per boat
•     Compatible with most load bars up to 1.5" tall x 3.5" wide (use 75mm bolts provided)

Installation:

•     Always refer to Malone’s Fit Guide for proper, correct and approved vehicle fit.
•     Bow and stern safety tie-downs are required for all Malone rooftop transport(s). Failure to correctly install and use safety tie-down lines voids all warranty and liability.
•     Carefully review instructions and register your warranty prior to first time use.

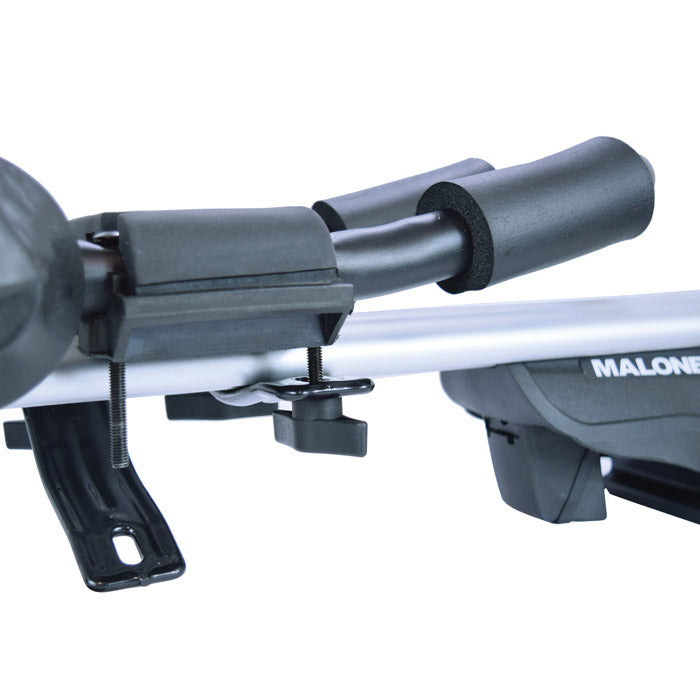

•     Malone carriers come with two lengths of mounting bolts in order to achieve the best cross bar fit. Retain unused bolts for future use with different cross bars.

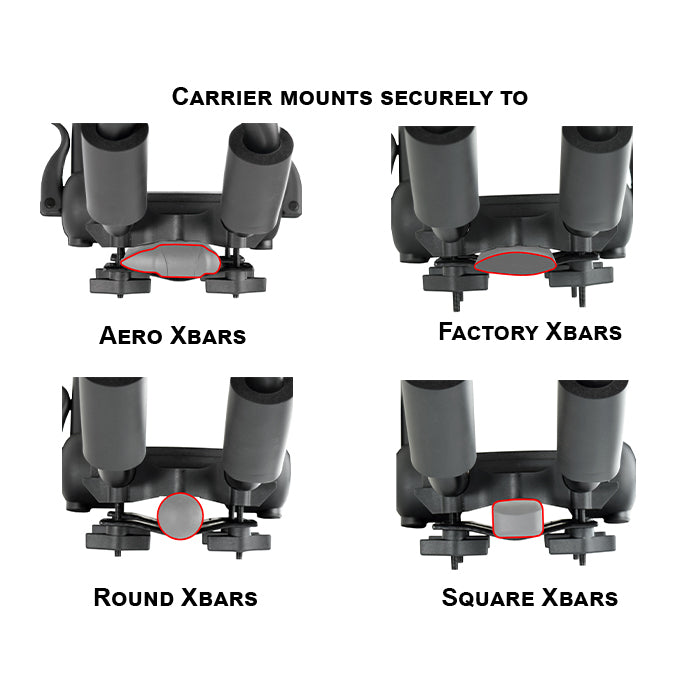

•     The carrier base has a rectangular "cutout" for square cross bar fit. The "cutout" will not affect the fit or function when installed to round or oval cross bars.
•     Optional T-Slot fit kits for Aero Style Bars and Truck Rack Systems sold separately.

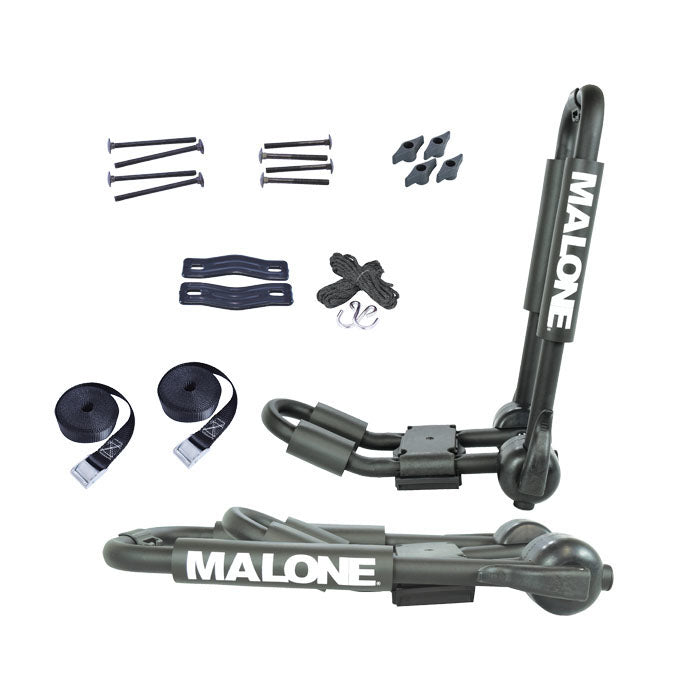

What’s In The Box:

    (2) Fold-Down Carriers
    (8) M6 x 1mm zinc coated 60mm Mounting Bolts
    (8) M6 x 1mm zinc coated 75mm Mounting Bolts
    (8) M6 T-Knobs
    (4) Universal Mounting Brackets
    (2) 11' Cam Buckle Load Straps
    (2) Bow and Stern Safety Lines w/ S-Hooks
    (1) Instruction Manual
